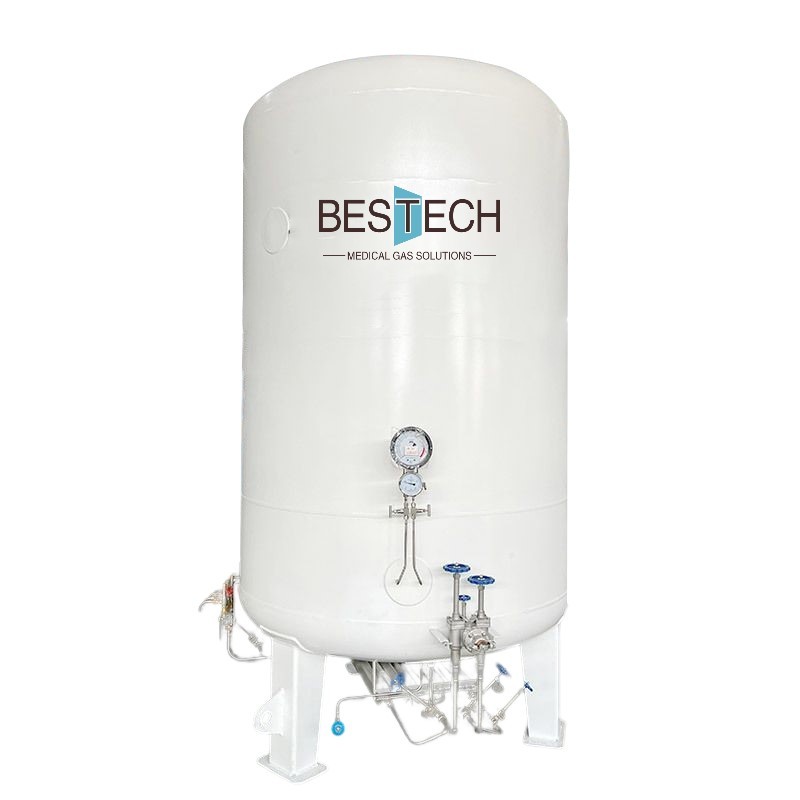

Cryogenic Liquid Oxygen Tank

Features of BT-12 Cryogenic liquid oxygen system：

1. Adiabatic performance:

Thermal insulation material selection of pearlite sand filling sandwich and vacuum, superb technology, unique filling process, quality assurance commitment, to achieve the best adiabatic effect. The surface anti-corrosion coating adopts sand blasting, rust removal, purging, spraying and other processes, and at the same time adopts two-component quick curing liquid coating.

2. Safety technical performance:

The storage tank adopts "combination and safety system valve", which USES two groups of safety valves to work at the same time. One side can be closed when the safety valve is regularly checked, and the other side can continue to work to ensure the safe operation of the storage tank.

3. Operating system:

Pressure gauge, differential pressure type liquid level meter and liquid level comparison table are set on the upper part of the container in the storage tank, which can keep track of the storage amount and pressure change of the container at any time, and facilitate the operation during filling and discharging.

4. Detection system:

Special vacuum detection, vacuum gauge and vacuum valve are set at the lower part of the storage tank, which can test the interlayer vacuum degree regularly or at any time with a vacuum meter to ensure the safe operation of the storage tank.
